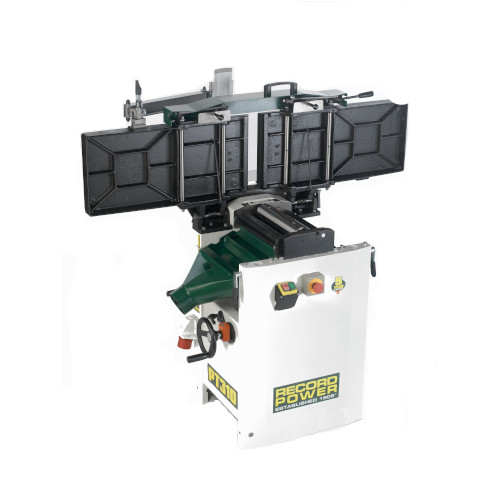

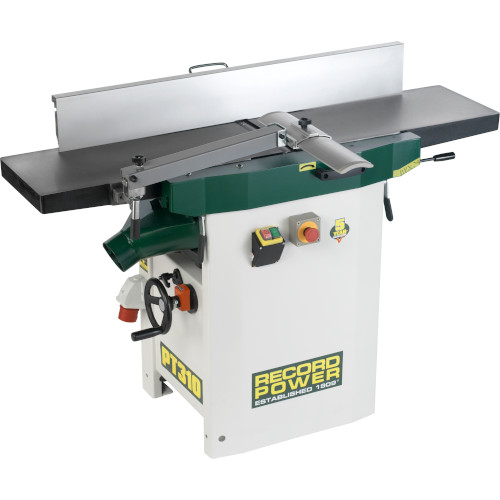

The Record Power PT310 is a compact yet extremely accurate, powerful and easy to use heavy-duty planer thicknesser. It has been designed to offer serious home users a high performance solution for accurate dimensioning of timber. One of the key features of the PT310 is its parallel table lift design. Changeover from planing to thicknessing mode is fast and easy - simply loosen the cam action table locks and lift the entire table assembly, including the fence, in one movement.
Specifications:
Thicknesser Feed Rate:7 Metres / Minute

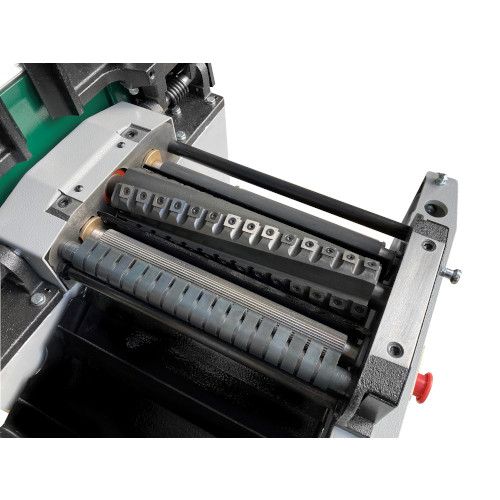

Cutter Block: Spiral Head
Maximum Thicknessing Height:230 mm
Maximum Thicknessing Width:310 mm
Maximum Thicknesser Depth of Cut:3 mm
Maximum Planing Width:310 mm
Maximum Planer Depth of Cut:3 mm
Planing Table Length:1407 mm
Motor input P1:2.75 kW
Motor output P2:2.2 kW
Weight:175 kg
Size:W1407 mm x D745 mm x H1005 mm
Key Features:
- Tilting Fence
- Cast Iron Tables
- Swing Away Table
- Rubber Out-Feed Rollers

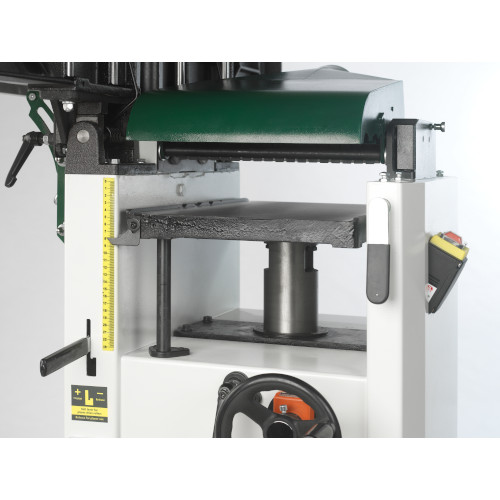

- Central Thicknessing Column
- Independent In & Out Feed Table Adjustment
- Wheel Kit Included
