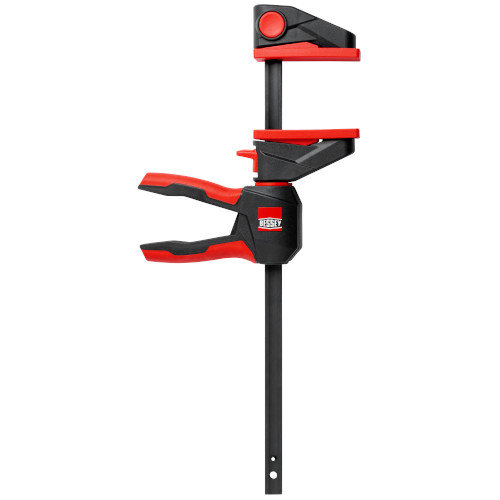

BESSEY One-handed clamp with rotating handle 600mm EZ360-60

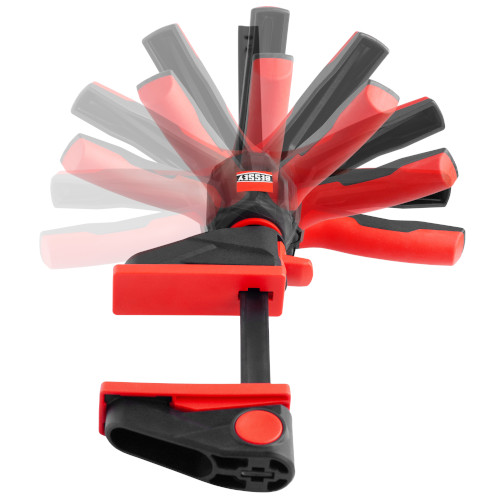

the handle rotation around 360
enables:
Swiveling the handle out of the working area after the clamping operation
A better clamping force application,as handle position can be adjusted to achieve the most ergonomic pumping position
Clamping of several clamps side by side in a confined space Handle position rotated by up to 180 allows access to each clamp
Clamping and releasing from the most diverse standing positions
Can be converted to spreading thanks to simple release mechanism by push button on the upper part
Application:-
Assembly work
Furniture and joinery works
Staircase construction
Dry construction
Kitchen construction and shop fitting
One handed clamping and spreading
DIY
- Opening A: 600 mm
- Throat depth b: 80 mm
- Rail section width: 18 mm
- Rail section thickness: 5 mm
- Weight approx.: 1.1 kg
- Spreading width e min/max: 195 - 765 mm
