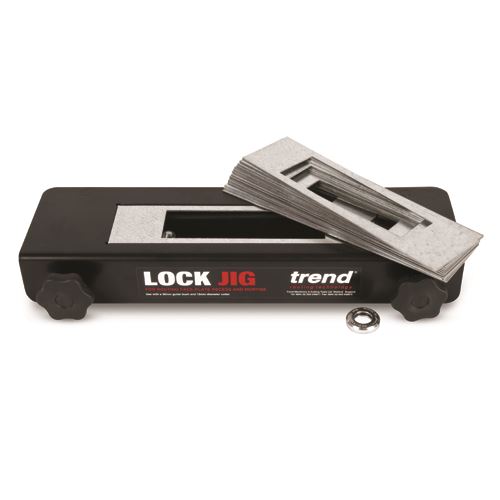

Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.
- Suitable for DDA (Disabilty Discrimination Act) lock size.
- 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise.
- Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
- Suitable for doors 34mm to 58mm thick.
- An auger bit and drill is required to complete deep mortises.

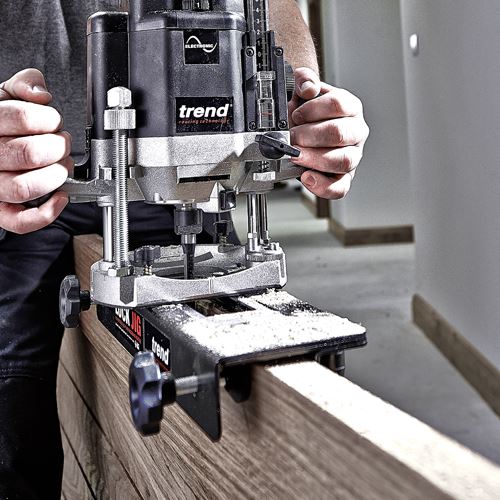

- The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
- Suits DIN style locks.
Includes:
- 1 x Guide bush collar
- 2 x Faceplate templates
- 1 x Mortise template
- 1 x Template adaptor
Templates included:
- 20 x 235mm (radiused ends) - template 1
- 24 x 235mm (radiused ends) - template 2
Mortise dimensions:
