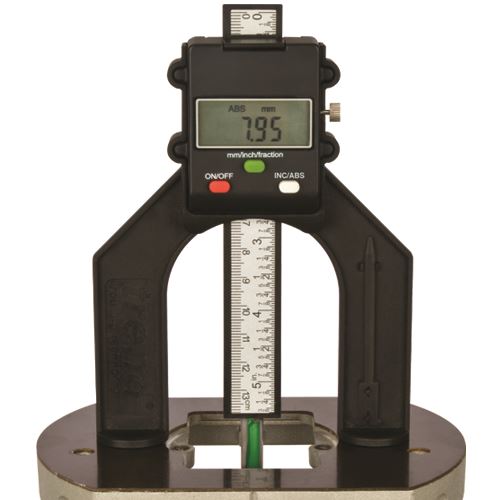

Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
- For hand routers, router tables and saw benches.
- LCD readout for mm, imperial and fractions with auto shut off 5 mins.
- Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
- Self standing with magnetic feet and flat back.
- Injection plastic moulding with plastic rule.
- 60mm wide aperture.
- Read-out has relative co-ordinate and absolute function.
- Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
- For UK sale only.
- Spare battery available ref. BAT/CR2032/3V.
Measuring range 80 mm (3-1/8")
Opening width 60 mm (2-3/8")
Resolution 0.05 mm (0.002")
Accuracy +/- 0.1 mm (0.004")
Repeatability +/- 0.1 mm (0.004")
Max. measuring speed 1.5 m/s (60 in/s)
Pin diameter 4.5 mm
Weight 92g
Voltage 3 volt
ABS mode (Absolute)
Measuring single amounts from Zero
INC mode (Relative) Measuring from last point
