Professional band saw, sturdy and extremely accurate, for woodworking shops and demanding craftsmen.

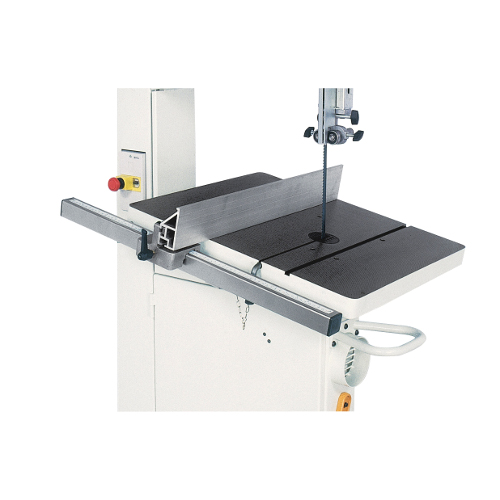

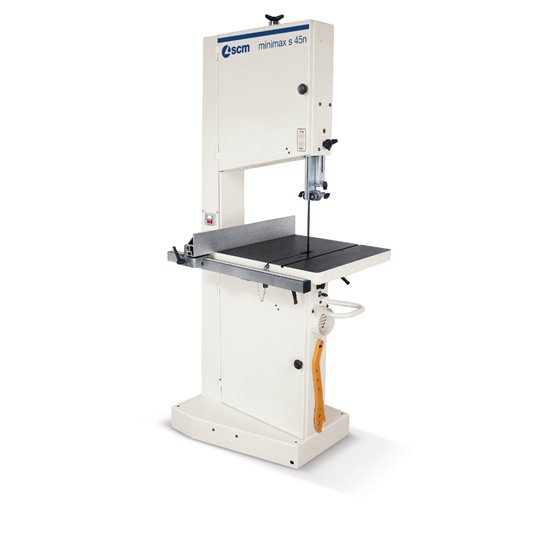

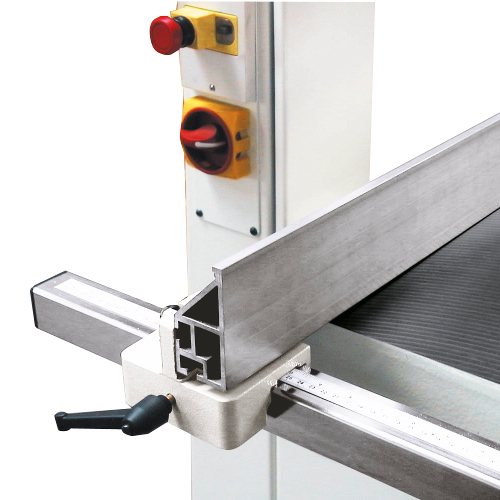

The minimax s 45n is an SCM Group made 2.5hp motor bandsaw. With over 20 years of service to the American Market and produced on the same line as the world-famous combination machine line, the S45N is a great saw for custom furniture makers. Some features include a large cast iron table, an easy to remove aluminum hi-low fence and large balanced wheels creating a fly wheel effect.

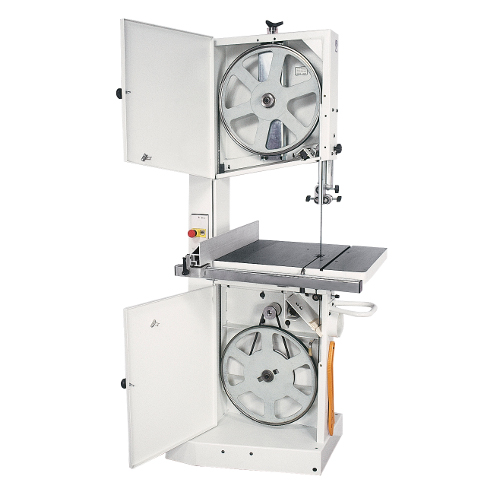

- Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
- Total safety machining with telescopic protections with rackwork to the blade.
- A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminum.
Depending on the specific location, we may in some cases be able to offer a cheaper delivery price. Please get in touch for details.
- worktable dimensions [mm] 600 x 520
- worktable height from floor [mm] 900
- cast iron saw wheels diameter [mm] 450
- saw wheels [rpm] 700
- max. cutting height [mm] 300
- max. cutting width [mm] 440
- worktable tilting (CE) 0° ÷ 20°
- min./max. saw blade length [mm] 3690/3742
- min./max. blade dimensions [mm] 6 x 0,5/25 x 0,5
- three-phase motor 3kW (4hp) 50Hz
- exhaust outlet diameter [mm] 120
Includes
- 58.01.54 Mitre fence for angular cutting
- 58.01.59 Wheels for machine movement
