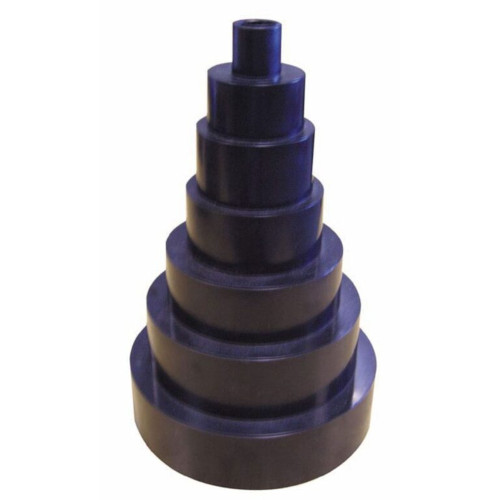

A Stepped reducing cone used to step down or up in hose size and used for connecting to machinery with different sized outlets.
This reducer has 7 steps so that any combination of two sizes can be achieved. For example to get a reducer fr0m 125mm (5″) down to 75mm (3″) it is necessary to cut off the unwanted parts just leaving the middle steps.
A hose clamp should be used to fasten hoses to the reducer.
Step Sizes Outside diameter:
150mm, 125mm, 100mm, 75mm, 63mm 50mm & 25mm
6″, 5″, 4″, 3″, 2.5″, 2″ & 1″
Outside Diameter (7 Steps) 150mm, 125mm, 100mm, 75mm, 63mm, 50mm & 25mm
Outside Diameter (7 Steps) 6", 5", 4", 3", 2.5", 2", & 1"
Wall Thickness 3mm
Overall Length 240mm
Length Each Step Decreasing 40mm to 25mm
Material Rigid Plastic
