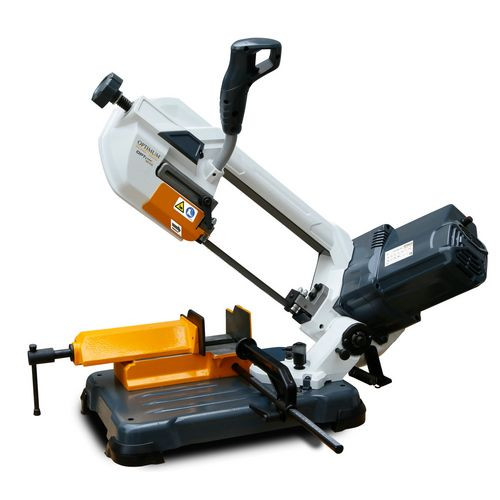

- In series with high-quality bi-metal saw blade
- Adjustable material stop for series work
- Push button on the lever arm for saw blade run switches the run of the saw blade on and offbelt on and off
- bottom plate with non-slip feet
- saw bow can be swivelled from 0° to +60° to allow angular saw cuts
Cutting ranges
- 0° round (full material) 125 mm
- 0° quadratic (full material) 125 mm
- 0° rectangle horizontal (full material) 125 x 125 mm
- +45° round (full material) 85 mm
- +45° quadratic (full material) 85 mm
- +45° rectangle horizontal (full material) 85 x 85 mm
- +60° round (full material) 50 mm
- +60° quadratic (full material) 50 mm
- +60° rectangle horizontal (full material) 50 x 50 mm
- Explanation Cutting range The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
- Max. length 795 mm
- Max. width/depth 613 mm
- Max. height 640 mm
- Length approx. 670 mm
- Width/depth approx. 382 mm
- Height approx. 420 mm
- Weight approx. 23.3 kg
Electrical Data
Drive motor output 0.4 kW
Supply voltage 230 V
Mains frequency 50 Hz
Machine data
- Saw band speed(s) 30 – 80 m/min
- Saw band length 1440 mm
- Saw band width 12,5 mm
- Saw band thickness 0,6 mm
- Cutting angle from to 0 – 60 °
- VPE 1
