When it is critical to drill a hole at a certain angle or the hole needs to be stopped at a specific depth, there really is no substitute for a dedicated drilling machine. By setting up the work piece and clamping it to the table all guesswork is eliminated and accurate and repeat drilling becomes simple and easy. Record Power have long had a reputation for fine drilling machines and our current range is no exception.

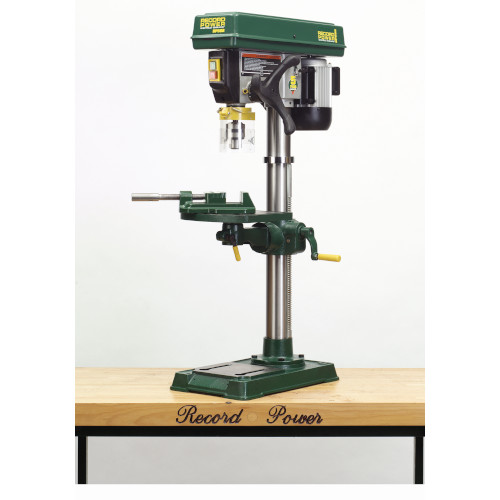

Making extensive use of steel and cast iron and driven by a powerful induction motor, the DP58B can be expected to give reliable service for many years. The headstock in particular is made from a large casting to give rigidity and absorb vibration.
The large, heavy table is fitted with rack and pinion rise and fall. The machine has 12 speeds, making it suitable for drilling metal as well as wood. This is particularly useful as most woodworkers have the occasional need to drill metal for hinges, brackets and plating etc. and it can be very frustrating to have the right machine for the job but not the right speeds.
Record Power have a high reputation for quality drilling machines and we believe that when this machine is compared to others in the market at similar (or greater) prices the value for money it represents will be quickly appreciated.
Drill press vice not included.
Throat Depth:165 mm
Depth of Feed:80 mm
Chuck to Table:371 mm
Chuck to Base:548 mm
Speeds:180, 250, 300, 400, 480, 580, 970, 1280, 1410, 1540, 2270, 2740 rpm
Motor input P1:0.6 kW
Chuck:2 Morse Taper / 16 mm
Motor input P2:0.37 kW
Weight:55 kg
Size:H1050 x W270 x D563 mm
Width | 270mm |
Height | 1,050mm |
Depth | 563mm |
Weight | 55kg |
