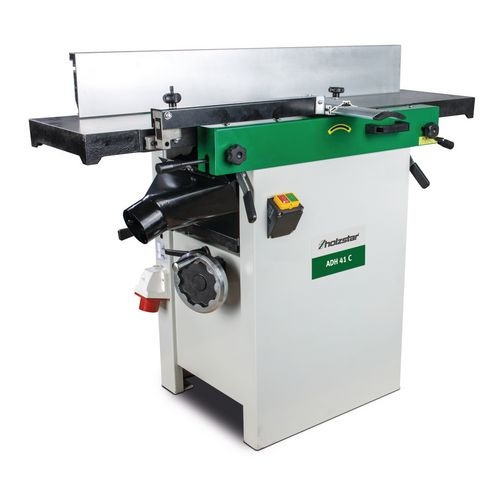

- For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
- Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing
- Automatic workpiece feed
- Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
- Large dimensioned dressing table made of ribbed die-cast aluminum
- Large thick cast iron table with ground surface
- Integrated, foldable chip extractor hood
- Equipment:
Simultaneous opening of the dressing tables
- Simultaneous folding up of the dressing tables with spring support for a quick and easy changeover for thickness planing in seconds
Fixed suction hood
Thanks to the fixed suction hood, it is no longer necessary to change the suction hose during the conversion
time-saving
The table height adjustment is easy and convenient via a handwheel
- Knife shaft with 2 HSS planing knives
- Powerful 230 Volt motor with 1.5 kW
- Reversible chip extractor hood
Dimensions and weights
- Length approx. 1620 mm
- Width/depth approx. 920 mm
- Height approx. 1010 mm
- Weight approx. 260 kg
Electrical Data
- Drive motor output 3,0 kW
- Absorbed power drive motor 3.73 kW
- Supply voltage 400 V
- Mains frequency 50 Hz
Extraction port
- Extraction port diameter thickness 120 mm
- Extraction port diameter joints 120 mm
Feed
Jointing
- Max. cutting depth 3 mm
- Planing stop pivoting range 90 – 45 °
Planing knife shaft
- Type Strip planer blade shaft
- Number of planing blades 3 St
- Speed 5200 min¯¹
- Max. planing width 408 mm
Thickness
- Working height min. 5 mm
- Working height max. 225 mm
- Max. cutting depth 3 mm
