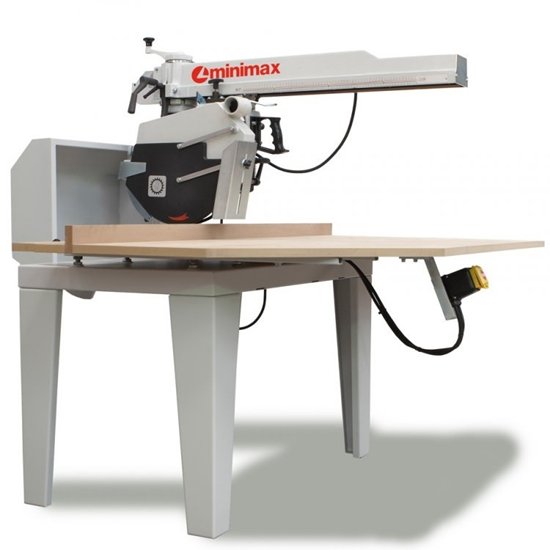

The radial saws of the formula line with an heavy cast-iron structure are available with 650, 750 and 900 mm cross-cut capacity.
Adaptability, versatility, cutting precision, easy maintenance make this product line a necessary machine for the daily use of each workshop.
- The cast iron structure provides the arm the maximum solidity and rigidity for the maximum cutting precision. The interchangeable sliding ways allows the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm.
- The 8 sliding bearings on the guides grant the best carriage smoothness and an optimal support for a perfect cutting result.
- The mechanisms of which the machine is equipped, as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time.
Depending on the specific location, we may in some cases be able to offer a cheaper delivery price. Please get in touch for details.
- Blade diameter mm 350 ÷ 400
- Blade tilting -45° ÷ +45°
- Max. cutting depth with blade at 90°/45° mm 120/83
- Cross cut capacity mm 640 x 20
- Three-phase motor 3kW (4hp) 50Hz
