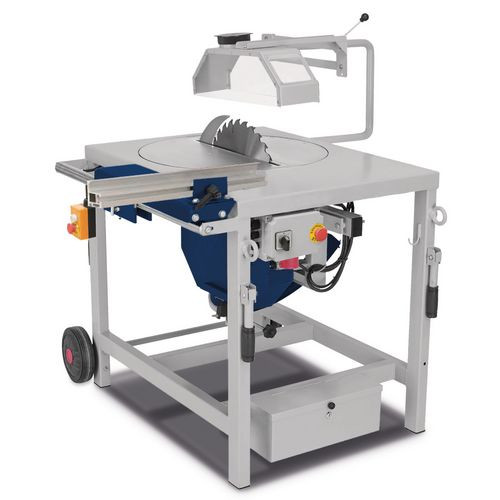

- Saw blade can be swivelled up to 45° and rotated by up to 90°
- Tilt of the sawing unit via hand lever and scale
- Guidance of the sawing unit for cut cuts from bottom to top via a lever
- Suitable for creating throat and burr rafters as well as eaves and wedge planks
- Parallel stop with scale
- Saw blade cover and working unit with suction connection 100 mm
- Toolbox on the machine frame for clean storage of the tool
- Chassis and hand lever facilitate transport
- Boom set available as an accessory to greatly facilitate work with long workpieces
Circular saw unit
- Max. cutting width with rip fence 640 mm
- Max. cross cut width left from saw blade 410 mm
- Saw blade angle 90 – 45 °
- Max. cutting height 90° 120 mm
- Max. cutting height 45° 90 mm
- (Main) saw blade diameter 400 mm
- (Main) saw blade speed 2800 min¯¹
Dimensions and weights
- Length approx. 1350 mm
- Width/depth approx. 1100 mm
- Height approx. 1180 mm
- Weight approx. 131 kg
Electrical Data
- Drive motor output 2,2 kW
- Absorbed power drive motor 2,8 kW
- Supply voltage 400 V
- Mains frequency 50 Hz
Extraction port
- Extraction port diameter bottom 100 mm
- Saw blade protection extraction port diameter 100 mm
Noise emission
- Sound pressure level 80.7 dB(A)
- Sound power level 96,7 dB(A)
Sliding carriage and table
- Sliding table length 560 mm
- Sliding table height 140 mm
- Sliding table width 40 mm
- Table length 945 mm
- Table width 715 mm
- Work height 845 mm
