Record Power TS250RS-PK/A Saw Package Deal

The TS250RS features a cast iron saw unit mounted on two substantial cast iron trunnions, CNC machined for accuracy and smooth operation. The trunnions are mounted on a solidly fabricated steel base to reduce vibration passing through to the table.



The sliding table has been upgraded and with the optional squaring frame offers a professional solution to panel sizing and cross cutting. Both tables are machined for accuracy.

Blade tilt and rise are handled smoothly by separate mechanisms operated by a rolled acme thread solid steel lead screw. The rip fence is mounted on a solid steel bar with a heavy cast mount featuring micro adjustment. This machine makes no compromises, offering repeatable accuracy on both panel work and solid timber and offers exceptional value for money. If you are in the market for a good quality, versatile saw then make sure you seek out this machine at a local dealer or show, as it needs to be seen to fully appreciate the value on offer.

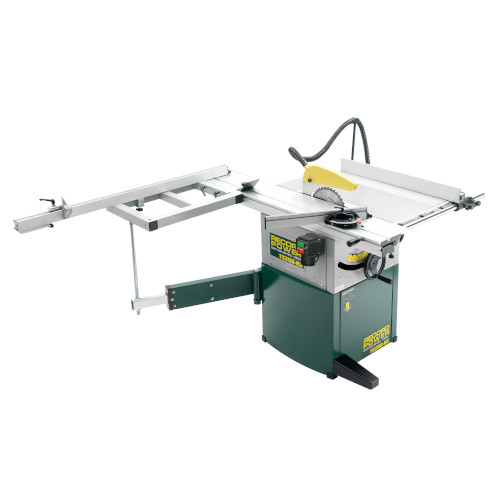

Shown with optional right hand extension.

Maximum Blade Size:250 mm

Blade Bore:30 mm

Blade Speed:4000 rpm

Maximum Rip Capacity:610 mm

Maximum Rip with Right Hand Extension:930 mm

Sliding Carriage Stroke:1225 mm

Blade Tilt: 0 - 45

Maximum Depth of Cut at 90º:80 mm

Maximum Depth of Cut 45º:54 mm

Table Height from Floor:855 mm

Motor:2 hp

Weight:162 kg

Size:H1090 x W2115 x D1322 mm
