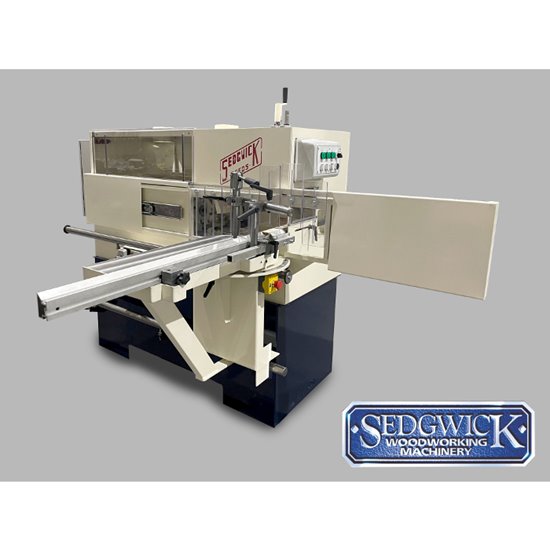

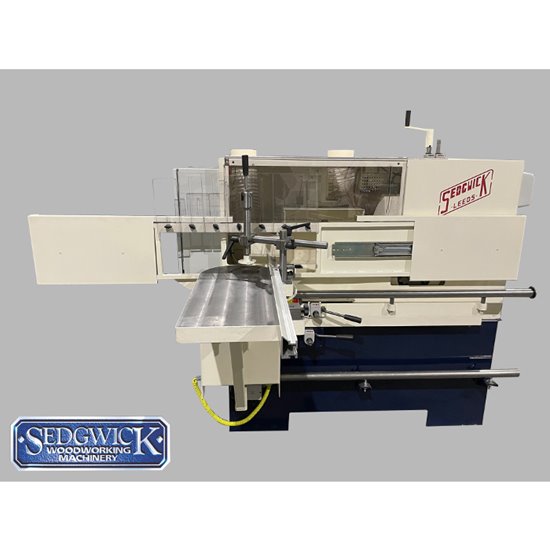

Machine Specification
TIMBER CAPACITY mm - 300 x 300mm
MAXIMUM TENON LENGTH - 150mm
TABLE SIZE mm - 765 x 340 (765x300 useful)
TABLE WORKING HEIGHT - 890mm
TABLE QUADRANT ADJUSTMENT - +/- 0-60 degrees

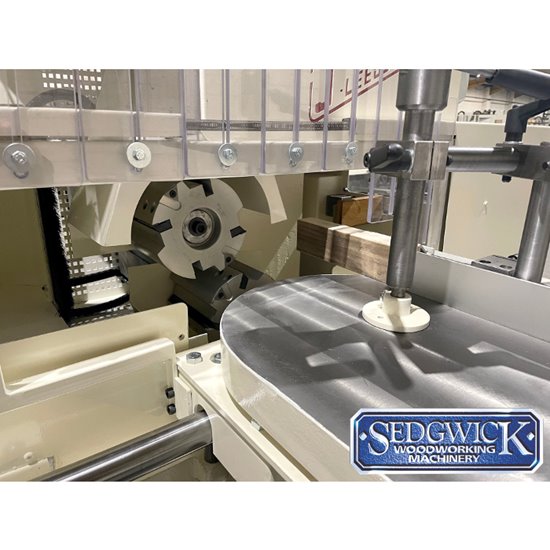

HORIZONTAL TENONING HEADS
CUTTERBLOCKS - 150 x 150 x 30mm
MAX TOOLING DIAMETER - 155mm (BOTTOM) 200mm (TOP)
VERTICAL ADJUSTMENT OF BOTTOM CUTTERBLOCK -2mm / + 77mm
VERTICAL ADJUSTMENT OF TOP CUTTERBLOCK +4mm / + 150mm
HORIZONTAL ADJUSTMENT OF TOP CUTTERBLOCK -50mm /+ 20mm
DUST EXTRACTION OUTLETS - 2 x 150mm
MOTOR RATING - 2 x 2.2 Kw (S6 40%)
FULL LOAD CURRENT - 4.75 AMPS
STARTING CURRENT - 35 AMPS
VERTICAL SPINDLE
SHAFT DIAMETER - 40mm
EFFECTIVE LENGTH OF SHAFT - 205mm
VERTICAL MOVEMENT - 140mm
HORIZONTAL MOVEMENT - 150mm
MAXIMUM TOOLING DIAMETER - 350mm
SPINDLE SPEED - 4000 RPM
MOTOR RATING - 5.5Kw (S1)
FULL LOAD CURRENT - 11.5 AMPS
STARTING CURRENT - 69 AMPS
ELECTRICAL
VOLTAGE / FREQUENCY 3 PHASE + EARTH; 400/230 V – 50/60 Hz
REQUIRED FUSE SIZE - 25A/ph
REQUIRED CABLE SIZE - 4mm2
This Machine is Currently Being Made to Order With an Approximate Lead Time Of 12 Weeks
Depending on the specific location, we may in some cases be able to offer a cheaper delivery price. Please get in touch for details.
