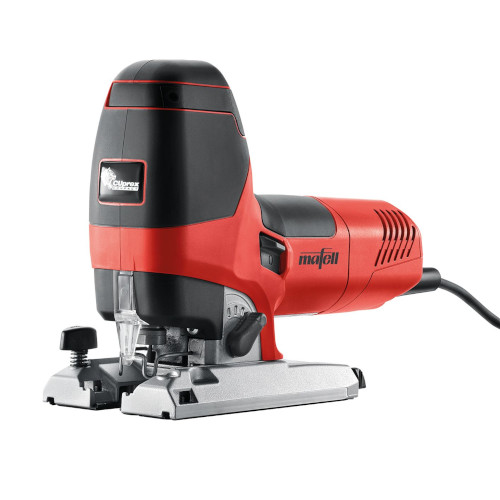

Owing to its ergonomic design, with low center of pressure and soft pads, the P1 cc is comfortable to hold in every situation.
Sophisticated self-extraction and a clever integrated blower keep the work surface free from chips, even if a dust extractor is not connected. The workplace therefore remains clean at all times.
The P1 cc offers continuously variable speeds in the range 800 to 3000 strokes/min., so that the output can be adjusted exactly to suit the material.
The sole plate, with integrated vacuum channel, is as sturdy as it looks. By way of a quick-release mechanism, it remains reliably fastened to the saw at an exact right angle.
Its intelligent accessories give the P1 cc unprecedented versatility. The innovative design of the new MAFELL precision sawblade CUnex W1, in particular, facilitates extremely precise sawing.
Applications
- Straight cuts with guide rail and CUnex
- Guided circle cutting with P-PA parallel fence and CUnex
- Recesses
- Bevel cuts up to 45°
- Compatible materials depend on sawblade; see special accessories/tools
Advantages
- The iF Product Design Award 2011 for the Jig Saw P1 cc.
- To change the sawblade, simply release the locking lever. With just one hand, effortlessly remove the blade and insert the replacement.
- The high-performance CUprex compact motor delivers consistently high speeds, even when executing long cuts.
- The vacuum channel integrated in the sole plate guarantees outstanding dust extraction directly alongside the sawblade.
Nominal power input 900 W
Nominal power input 1.2 hp
Universal motor 230 V / 50 Hz
No-load number of strokes 800 - 3000 1/min
Weight 2,5 kg
Weight 5.5 lbs
Stroke height 26 mm
Stroke height 1 in
3 jig saw blades CUnex W1, W2, W+P2
1 Parallel guide fence P-PA; Ref. No. 205448
1 base plate P1-GP; Ref. No. 204350
1 hose connector P-AS; Ref. No. 203917
1 chip deflector P-SA; Ref. No. 204353
1 splinter guard P-SS; Ref. No. 205447
1 glider P-G; Ref. No. 205464
1 Mains cable 4 m (13.1 ft)

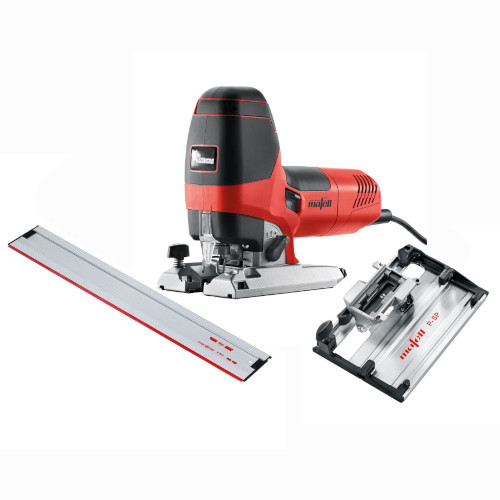

Transport and storage box T-MAX

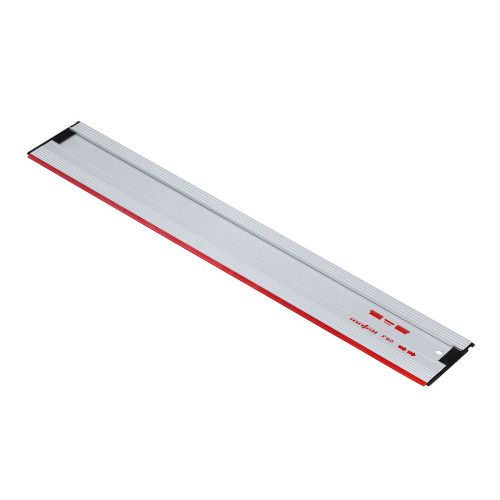

1 F 80 Guide rail

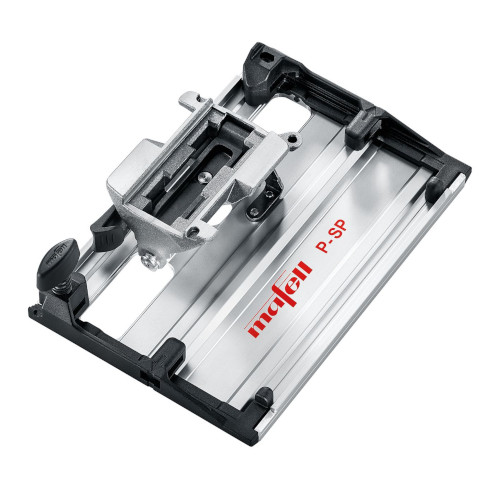

1 Tilting plate P-SP
