Functions
Mobility, versatility and best results – perfectly combined.

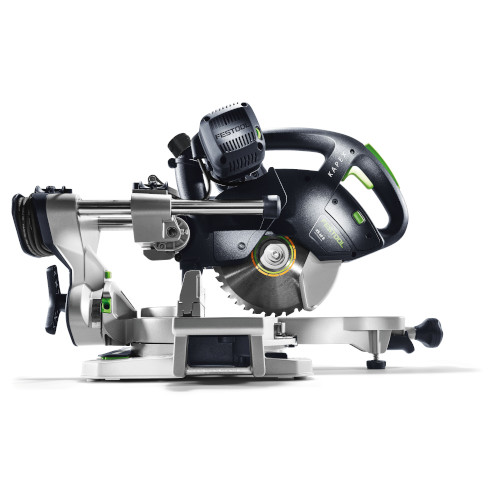

The new KAPEX KS 60 dispenses with everything not needed for the job – such as every unnecessary gram of weight. With impressive features such as ergonomically positioned carrying handles, cord holder and transport safety device and an extremely compact design thanks to flush-mounted guide rods, this device makes no compromises in terms of precision and versatility – with a mitre angle on both sides of up to 60 degrees and an inclination angle on both sides of up to 46 or 47 degrees. The Festool twin-column guide with two bearings ensures that the saw blade is guided reliably and smoothly. A range of other clever details such as the LED spotlight, the pull-out extension table, the additional groove function and the bevel help to make the KAPEX KS 60 a perfect combination of mobility, versatility and optimum results.
- Compact and lightweight, with ergonomic handles and cord holder
- LED spotlight to show cutting lines precisely (included in the set or available as an accessory)
- Bevel for producing interior and exterior angles
- Inclination angle of up to 47°/46° on each side and mitre angle of up to 60° on each side
- More mobile with the base frame: The UG-KAPEX base frame is a stand and a transport frame in one
- Cutting depth limiter for rapid grooving
- For a clean and healthy working environment: The extraction system in combination with a Festool mobile dust extractor sucks up the dust at its source
- Always adapted to the working material: Festool saw blades are ideally adapted to the KAPEX KS 60 and the materials being used
Main applications
- Ideal for mobile use in assembly applications
- Cutting boards and panels up to 305 x 60 mm
- Trimming strips, profiles and square timber up to 60 mm thick
- Precisely angled adjustment of skirting boards and cornices without calculations – in conjunction with the bevel
Power consumption 1 200 W
Idle engine speed 1 300 - 3 500 min⁻¹
Saw blade diameter 216.00 mm
Cutting depth 90°/90° 305 x 60 mm
Cutting depth at 45°/90° 215 x 60 mm
Cutting depth 45°/45° (left) 215 x 40 mm
Inclination angle 47/46 °
Mitre angle 60/60 °
Dimensions (W x D x H) 661 x 475 x 430 mm
Dust extraction connection diameter 27/36 mm
Cable length 3.70 m
Cutting depth 60°/90° 150 x 60 mm
Cutting depth 45°/45° (right) 215 x 20 mm
Product weight without accessories 17.90 kg
Transport weight incl. accessories 21.89 kg
Drive type Mains

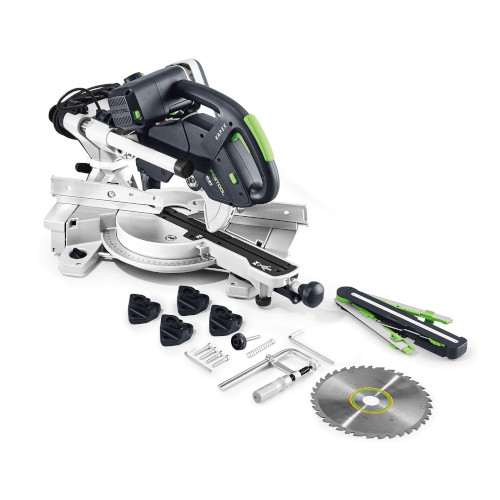

Saw blade HW 216x2,3x30 W36
fastening clamp FSZ 120
Spot lighting SL-KS 60
Bevel SM-KS
Increase A-SYS-KS 60
hex key, WAF 6
