Functions
When traction meets planer quality.

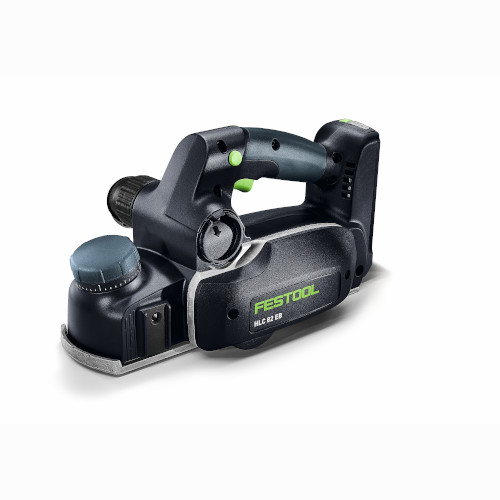

The handy HLC 82 cordless planer is your reliable companion on the construction site and in the workshop when it comes to quick adjustment work. Chamfering of beams, edge transitions of wooden wallboards, rebates on doors, adjustments to skirting or infill panels: With the cordless planer, you are flexible in your application. You can always rely on maximum power: The HLC 82 works best with the powerful 5.0 Ah Li-HighPower or the 8.0 Ah Li-HighPower battery pack.
- Fast: More speed and flexibility thanks to 2.5 mm maximum chip removal and 25 mm rebate depth.
- 18V Power: Best in combination with the 5.0 Ah Li-HighPower or the 8.0 Ah Li-HighPower battery pack for maximum runtime and maximum power.
- Flawless: Drawing cut and spiral blade for particularly fine surface quality.
- Versatile: Chamfering with three integrated 90° V grooves in the planer foot.
- For large-scale chip removal: Thanks to the two different extraction channels, the planer is also suitable for continuous applications with greater chip removal.
- Flexible: Extractor connector attachable on both sides for convenient working, the suction hose is not in the way.
- Convenient: Removable chamfer adaptor for fast and accurate creation of chamfers for beams and square timbers.
- Handy: Easy guidance of the planer on the workpiece thanks to ergonomic design.
- Quiet: The spiral blade reduces the noise level considerably.
- Precise: Chip depth adjustment (0–2.5 mm) on the dial – simple and convenient, easily accessible, even during planing.
- Compatible: With all Festool 18V battery packs (except Ergopack).
- Powerful: The brushless EC-TEC motor ensures constant power, even at maximum chip depth.
- Efficient: The quick-acting brake brings the planer to a standstill in less than two seconds, thereby minimising the risk of injury and damage to the workpiece.
- use only with HW 82 SD HLC 82 (577999) spiral blade
- HL 850 planing heads not compatible
- long swarf groove
Main applications
- Carrying out quick adjustment work
- Ideal for quickly creating precise and long chamfers on beams and square timbers thanks to the removable chamfer adaptor
- Straightening the edge transitions of wooden wallboards
- Doubling of rafters, adjustment work for older building renovations (roof, dormer, floors, ceiling)
- Adapting stair stringers in an existing context
- Adjustment work on doors, cornices or infill panels
- Wide range of applications due to the 25 mm rebate depth and the three V grooves integrated in the planer foot
Battery voltage (rated voltage) 18 V
Planer shaft speed 11,500.00 min⁻¹
Planing width 82.00 mm
Planing depth 0 - 2.5 mm
Max. rebate depth without stop 25.00 mm
Max. rebate depth with stop 23.00 mm
Dust extraction connection diameter 36 mm
Product weight without accessories 2.70 kg
Transport weight incl. accessories 5.00 kg
Drive type Battery
Technology Bluetooth®

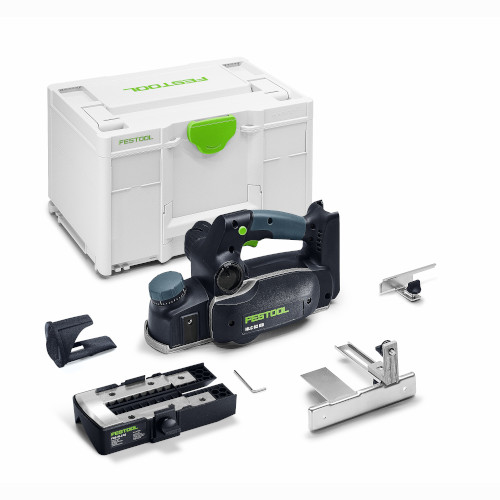

- parallel side fence
- Rebate depth stop
- Chamfer adaptor
- hex key, WAF 2,5
- short extraction channel
- Systainer³
